- 2025 model

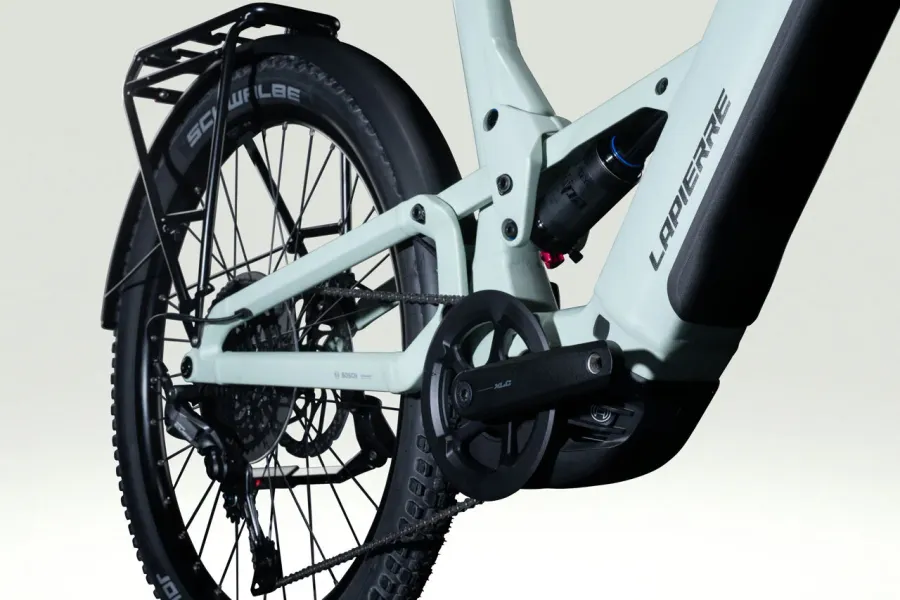

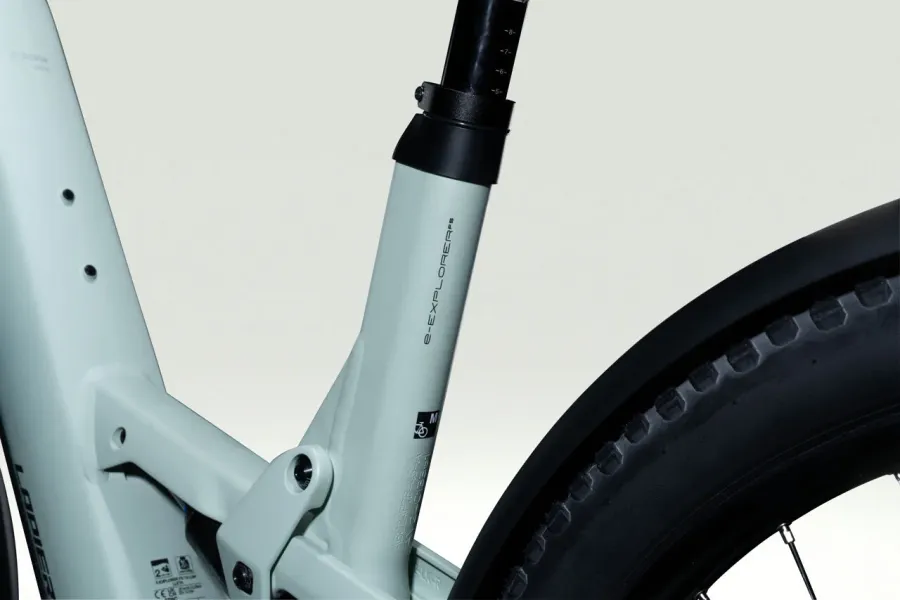

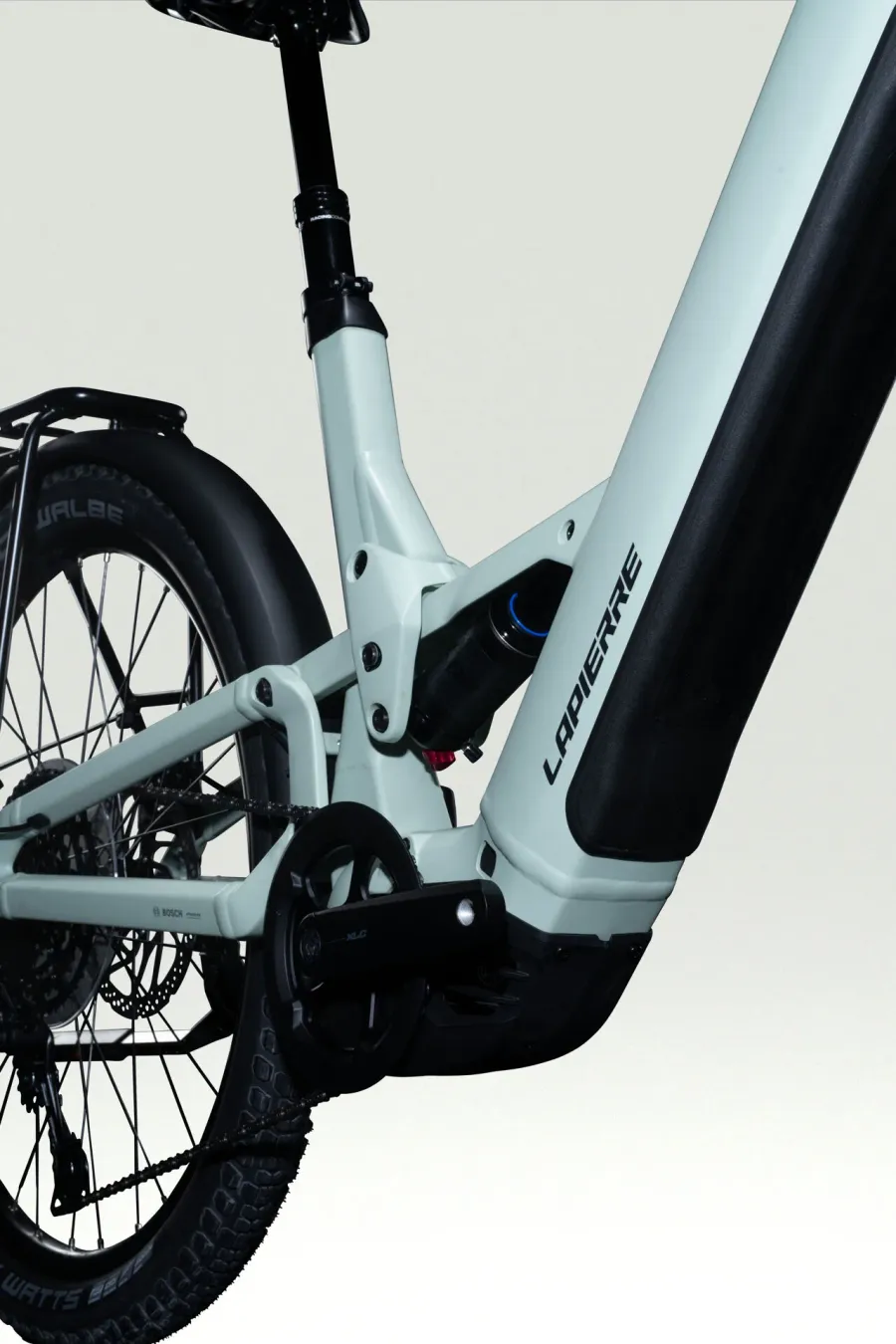

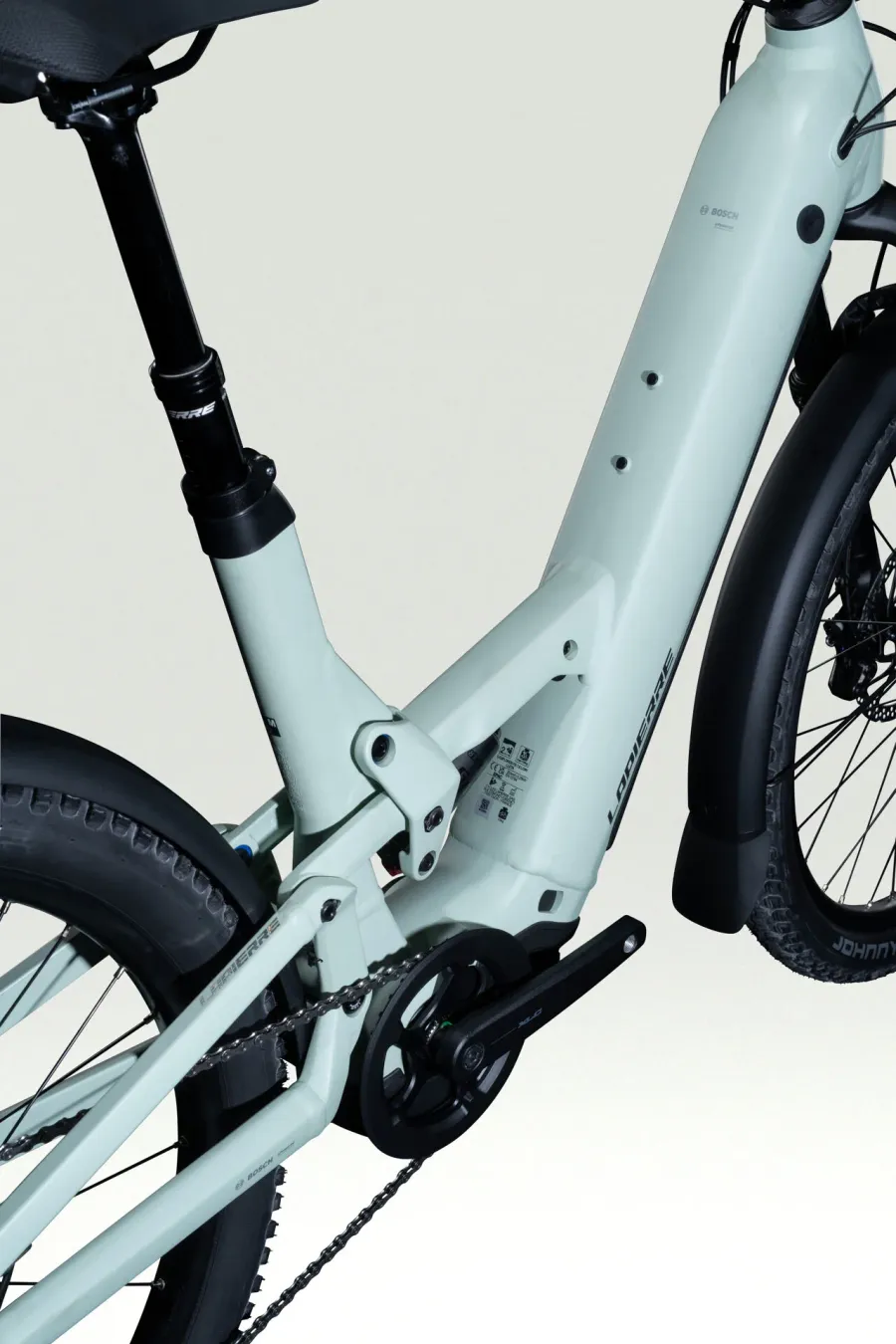

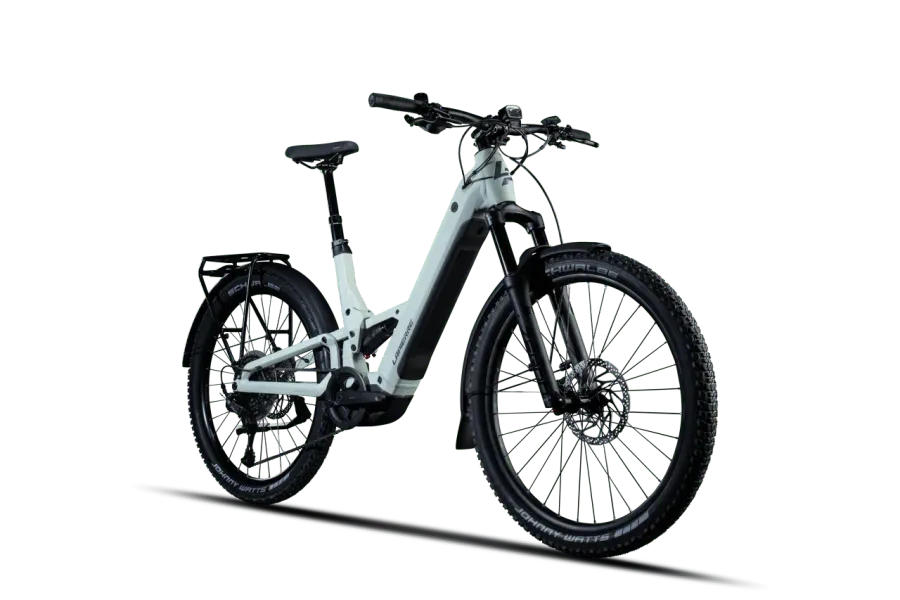

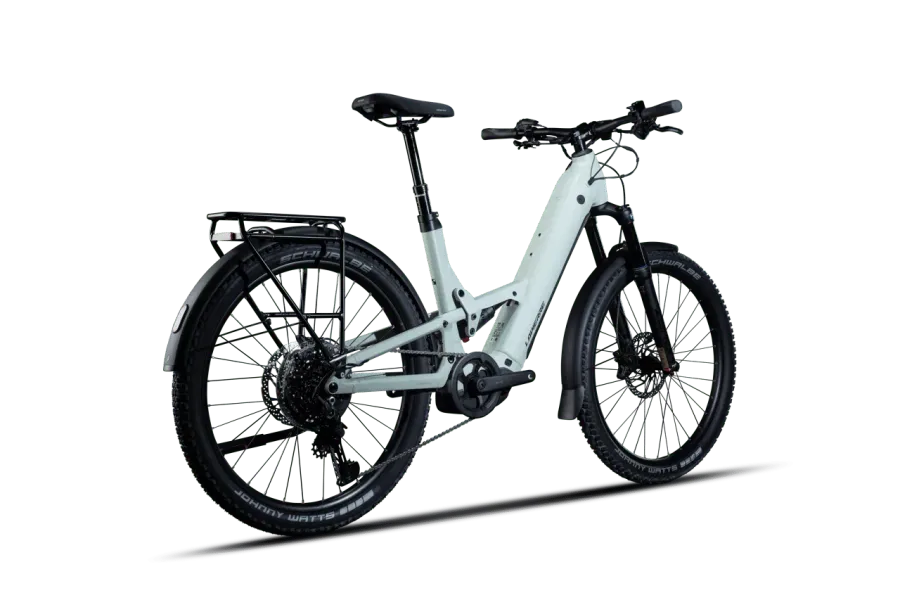

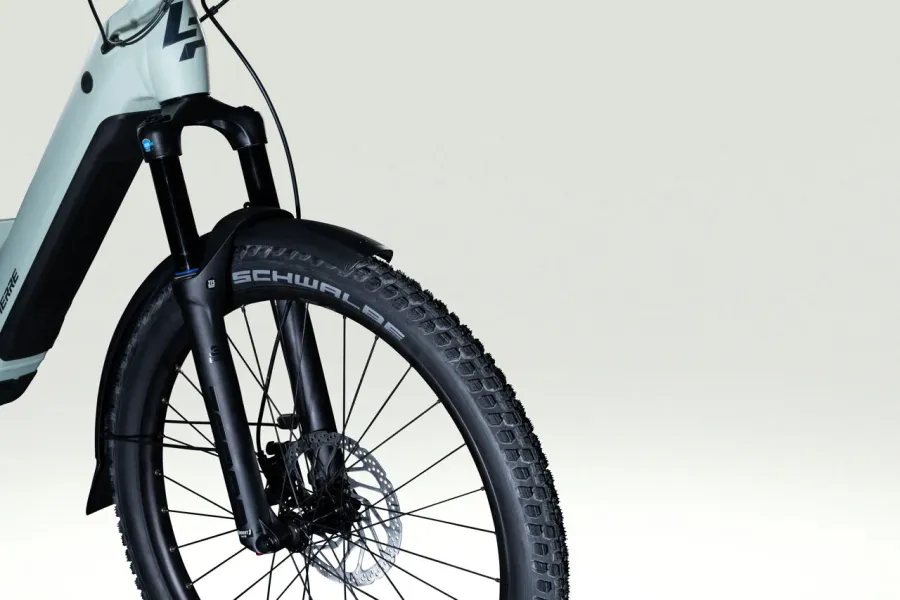

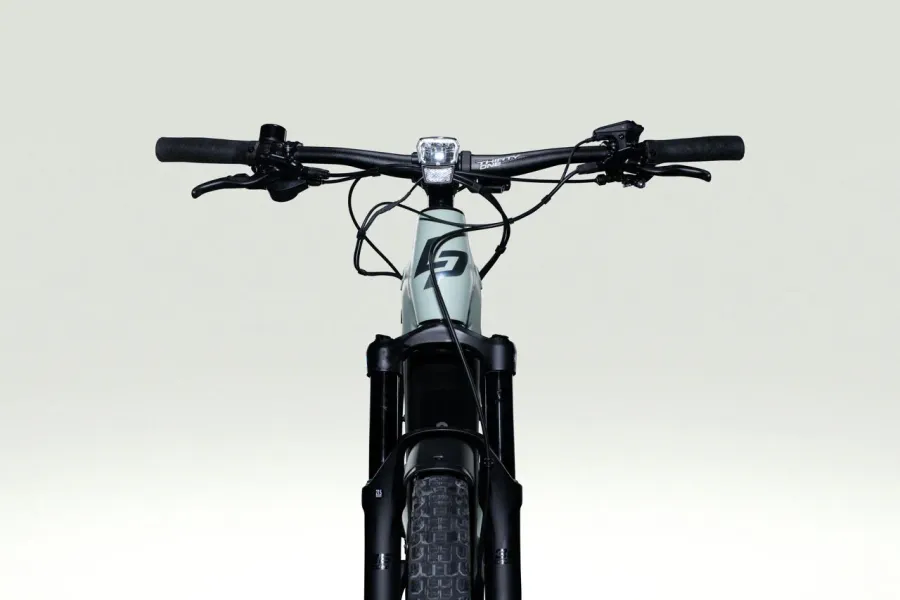

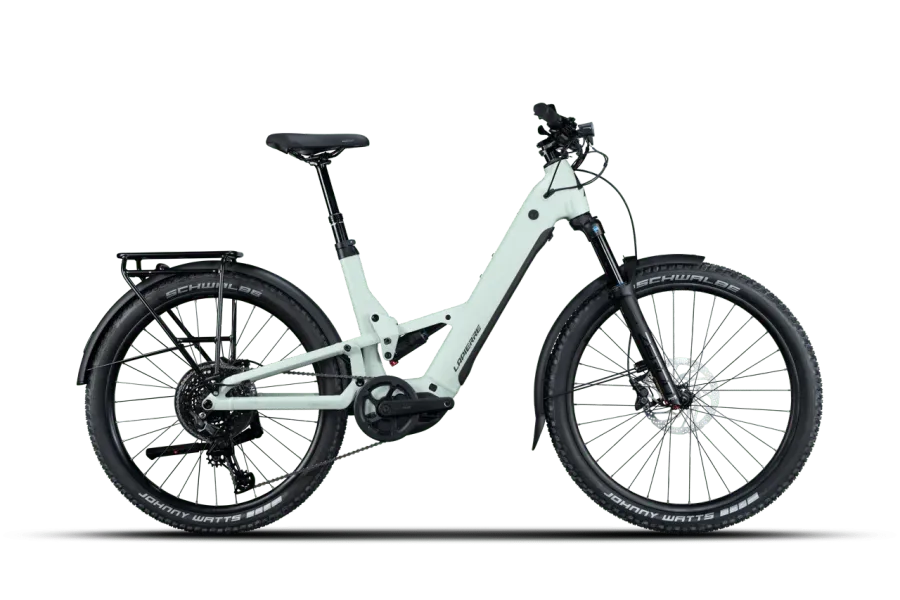

LAPIERRE E-EXPLORER FS 7.6 LOW Low step-through fresh mint green – matt 2025
CHF 3'999.–
Sold outComponents
Frame and more
- Rider sizes:
- · S 156-174 cm
- · M 170-185 cm
- · L >182 cm
- Maximum total weight (KG): 130 kg
- Fork type: Suspension
- Fork: Suntour, SF25 Zeron 36X EQ Air 15×110 27,5″ 140 mm
- Frame: LOW, Aluminium, Low step-through
Handlebar and saddle
- Handlebar material: Aluminium
- Seatpost material: Aluminium
- Grip: Lapierre
- Handlebar: Lapierre, Flat bar, Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm
- Headset: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
- Saddle: Selle Royal, Essenza plus moderate

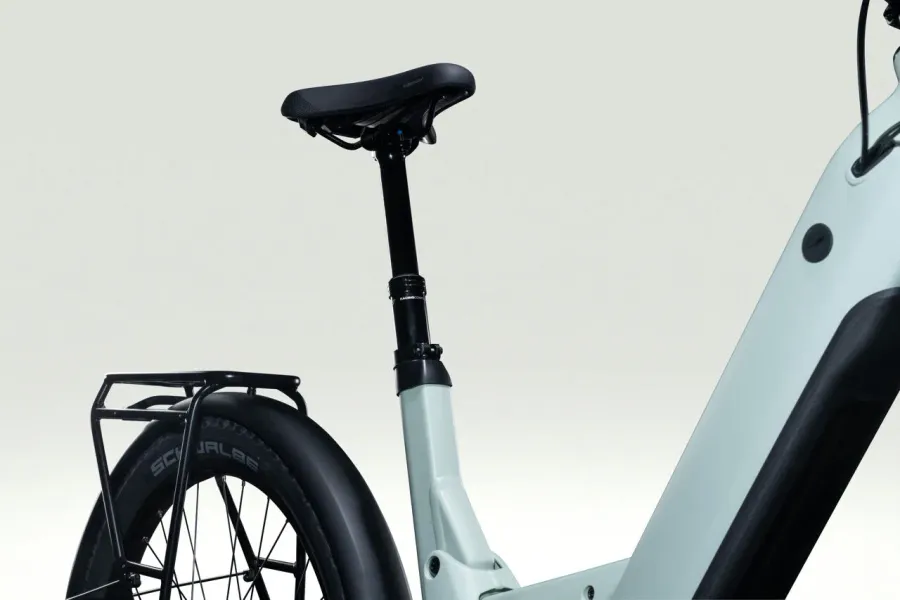

- Seatpost: Limotec, Dropper post, A1, Ø: 34.9 mm, travel: 125 mm + Shimano lever
- Stem: Lapierre, Thirty One aluminium, 0°, Ø: 31.8 mm, L: 55 mm
E-bike components
- Battery capacity: 600 Wh
- Battery position: Down tube
- Motor torque [nm]: 85 Nm
- Motor position: Centre
- Battery: Bosch
- Charger: Bosch, Fast charger, Charger 4A
- Display: Bosch, Intuvia 100
- Motor: Bosch, Performance line CX
Lighting

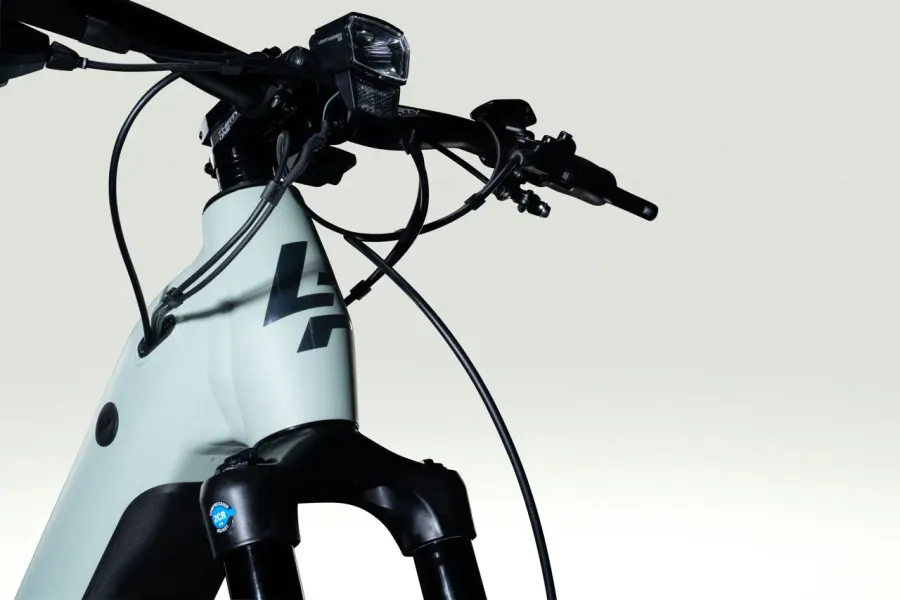

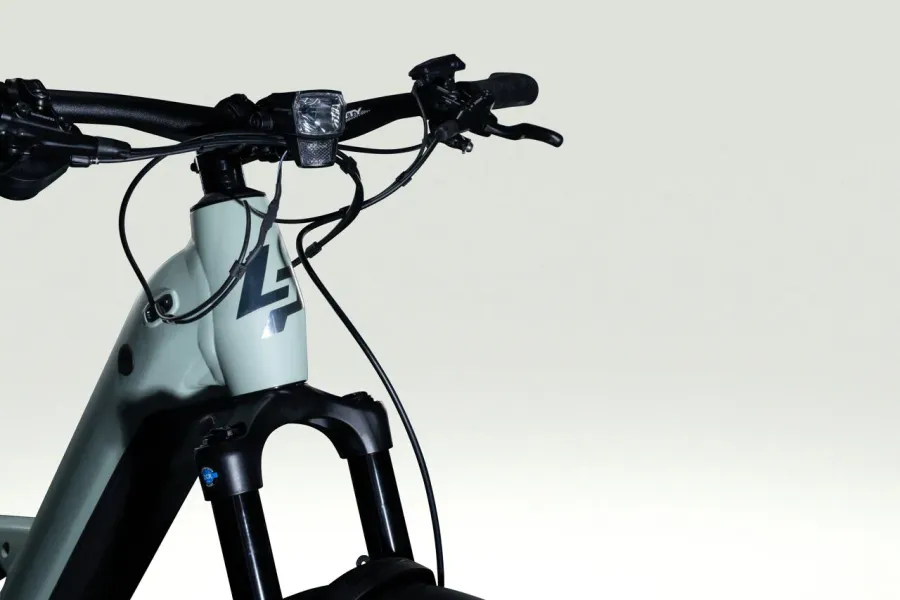

- Front light: Trelock, LS 800 Light Hammer 60
- Rear light: Stronglight, Integrated rear light
Geometry
- Bottom bracket width [mm]: 20 mm
- Chainstay length [mm]: 465 mm
- Fork offset [mm]: 540 mm
- Total fork length [mm]: 44 mm
- Head angle: 66 degrees
- Head tube length [mm]:
- · 140 mm
- · 150 mm
- · 160 mm
- Reach [mm]:
- · 423 mm
- · 446 mm
- · 473 mm
- Stack [mm]:
- · 623 mm
- · 632 mm
- · 642 mm
- Seat angle: 75 degrees
- Seat tube length [mm]:
- · 400 mm
- · 450 mm
- · 490 mm
- Top tube length [mm]:
- · 590 mm
- · 615 mm
- · 645 mm
- Wheelbase [mm]:
- · 1204 mm
- · 1231 mm
- · 1263 mm
Rear rack
- Rear rack maximum load: 25 kg
- Rear rack: Stronglight, S-Carus MIK rack
Wheels and wheel components
- Wheel size: 27.5
- Front hub: Shimano, TC500, boost 15×110, 32H Centerlock
- Rear hub: Shimano, TC500, boost 12×148, 32H Centerlock, HG freehub body
- Front mudguard: Curana, 70 mudguard
- Rear mudguard: Curana, 70 mudguard
- Rim description: Ryde, Rival30 32H, 30-584 disc brake rim
- Tyre: Schwalbe, Johnny Watts Performance, DD, Raceguard, 67EPI, 60-584
- Wheel size: 27.5
Braking system
- Rear brake mount: Post Mount
- Front brake: Shimano, Hydraulic disc brake, M4100 4 pistons, 203 mm
- Rear brake: Shimano, Hydraulic disc brake, M4100 2 pistons, 203 mm
- Brake lever: Shimano, BL-M4100
Drivetrain
- Cassette teeth: 11-48T
- Chainring teeth: 38T
- Crankset type: single chainring
- Number of gears: 10
- Cassette description: Shimano, Cassette, CUES CS-LG300-10, HG
- Chain: Shimano, Chain, CUES LG500 9/10/11s
- Crankset: XLC, Cranks + FSA GEN5 chainring with bashguard

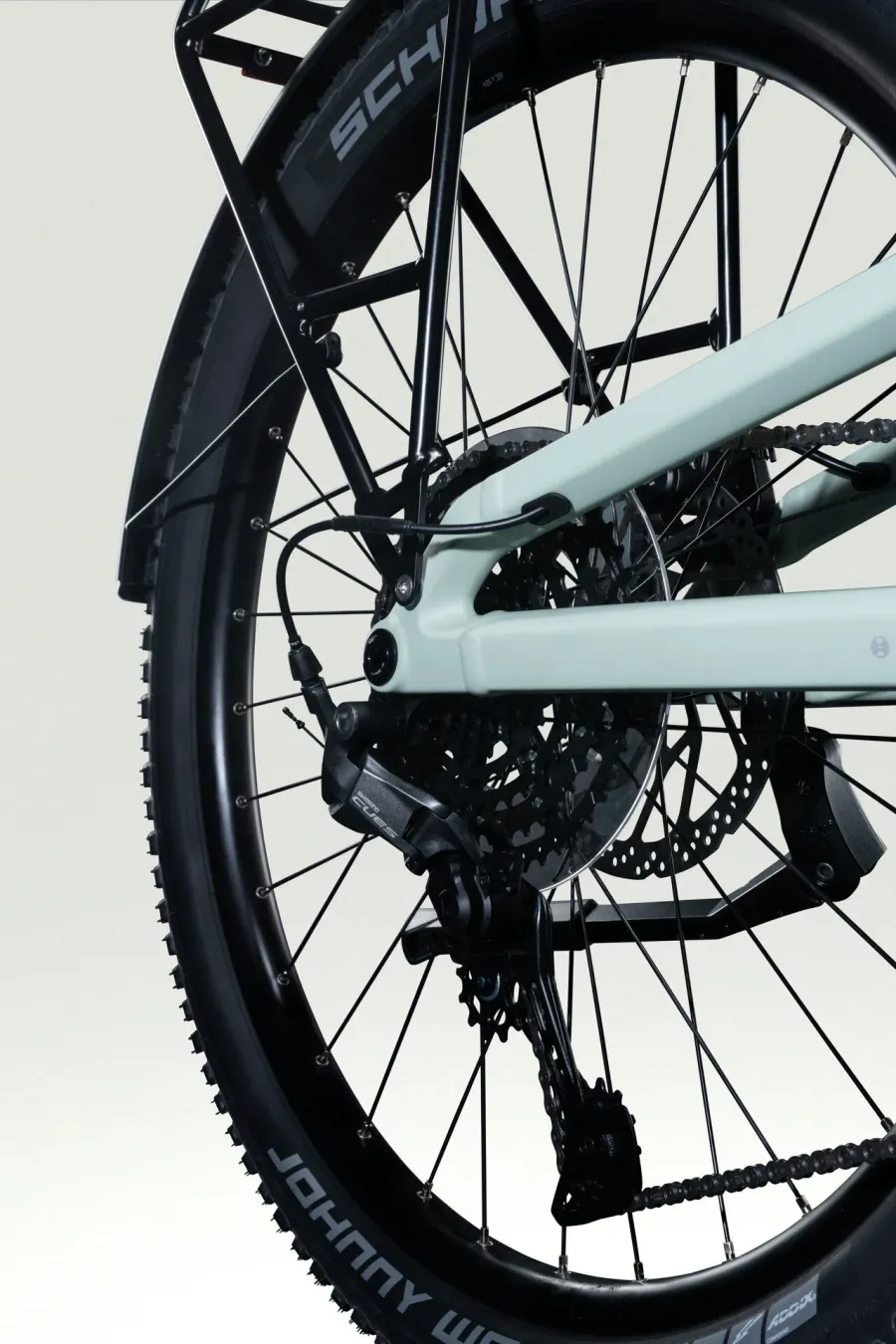

- Rear derailleur: Shimano, CUES RD-U6000 10/11s Shadow+
- Gears: Shimano, Derailleur
- Pedals: XLC, by VP
- Right shifter: Shimano, Triggershift, CUES SL-U6000-10R
Available sizes: S, M, L
Test rides by appointment at the shop in Le Bouveret. Size advice on site.
Description and specifications
E-EXPLORER 7.6 High & Low
The E-Explorer e-MTB and its Bosch GEN 5 motor see the city in a whole new way. Ever more connected, agile and responsive, it offers far more than comfort on your commute. Its entire ecosystem embraces modernity, with rock-solid functionality and a High or Low geometry that is right up to date. Quickly indispensable in your daily life, the E-Explorer lets you do your shopping with peace of mind and get around town, but also head off at the weekend to discover your region (whatever it may be). Functionality and enjoyment: choose a bike that breathes modernity!
A generation of discoveries
Bosch No. 5 and E-Explorer: a winning partnership. With the brand-new generation of the German electric motor, the bike gains in lightness, but also in harmony with the elements and in its ability to accompany you on your adventures. Equipped with a Performance Line CX New Gen drive and a 600wh battery, the progressive and smooth assistance supports your journeys while being even more connected. In addition, accessories such as mudguards or rear racks give another dimension to this confident urban bike.
To find out more about this bike and choose your size, visit the official Lapierre website!
Additional information
| Bike size | S, M, L, XL |
|---|
